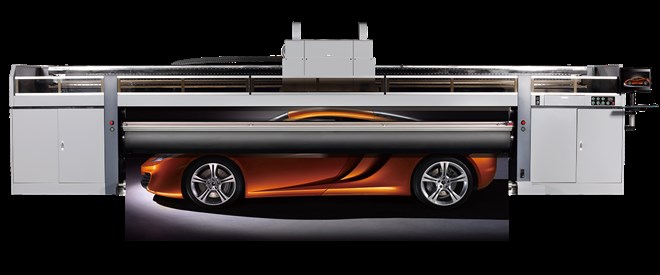

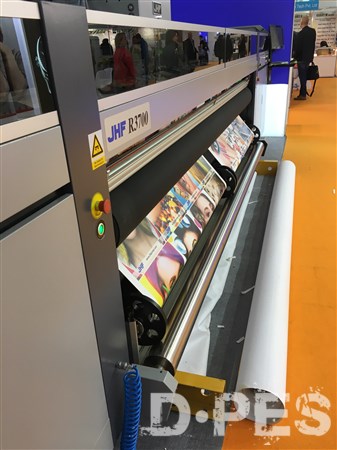

R3700 Pro Roll to Roll Kyocera Printhead UV
Inkjet Digital Industrial Printer Specification
Printhead Mode |
Kyocera 6*2 |
Controlling Software |
JHF Printer |
Max Printing Width |
3200mm |
Environmental Requirements |
18-28ºC/ humidity: 30%-70%(non-condensing) |
Printing Speed |
High Speed Mode |
300*1800 dpi 230m²/h |
Air Pressure Parameters |
0.8-1 |
Production Mode |
600*1200 dpi 180m²/h |
Quality Mode |
600*1800 dpi 120m²/h |
Ultra Quality Mode |
1200*1200 dpi 95m²/h |
|
|
Substrates |
lightbox PVC, backlit PET Film,fabric,soft signage material |
Connectivity |
PCIE |
Electrical Power |
380V,50/60HZ,8KW 13A |
Inks |
UV link |
Machine Size |
6620mm*2000mm*1940mm |

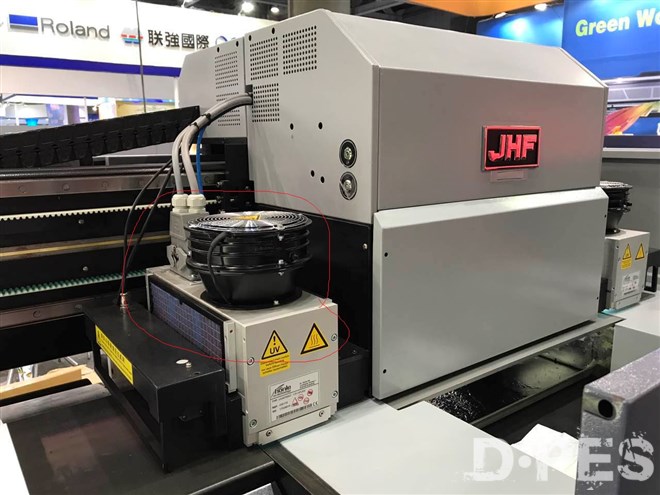

Curing Solution |
Honle UV lamp |
Machine Weight |
3800kg |
Variable Drops |
Yes |
